96 trx300 carb help

7233 Views 7 Replies 3 Participants Last post by mud99, Oct 31, 2010

dodgetrucker75

Discussion Starter · Oct 24, 2010

first off, hellow, i'm new here, but an expierenced forum member and mechanic...

i have a 96 trx300 2x4 i'm trying to bring back from the dead, it sat for an unknown amount of years (last sticker was 2006, but who knows?) the cdi was toast, replaced it with a hot shot box and got spark, then went for the carb...

i have cleaned it mutiple times with no luck, it will not idle, but runs great when driving it, tring to adjust the idle up and it will want to "run away" adjust it back down and it stalls, i have cleaned and blown out everything i can find,

the two things i am unsure of are...there are 3 jets, the main (everything seems fine) the smaller one next to it, (seems like there should be a hole in the end of the jet, but cant get anything through it), and near the botton of the tube the smaller get is in, there is a hole, it was pluged when i started, but blew out with air, but i'm not sure if it is one of thoes holes that should be pluged, any ideas?

and i do now have a carb kit on the way...

Save

1 - 8 of 8 Posts

tomgodd

· #2 · Oct 24, 2010

The smaller jet should have a hole. It is your pilot jet and controls the idle through 1/4 throttle. GO to the shop and get a new one. they are around 6 bucks. I know its alot. I just had to rejet my quad and bout about 60 dollars worth of jets.
Welcome to the Family!

Save

dodgetrucker75

Discussion Starter · #3 · Oct 24, 2010

tomgodd said:
The smaller jet should have a hole. It is your pilot jet and controls the idle through 1/4 throttle. GO to the shop and get a new one. they are around 6 bucks. I know its alot. I just had to rejet my quad and bout about 60 dollars worth of jets.
Welcome to the Family!

thanks, thats what i thought, i have tried everything i can to get it cleaned out, but cant do it, i got a rebuild kit coming with all new parts, so i will see what happens when that arives, and give an update

Save

dodgetrucker75

Discussion Starter · #4 · Oct 24, 2010

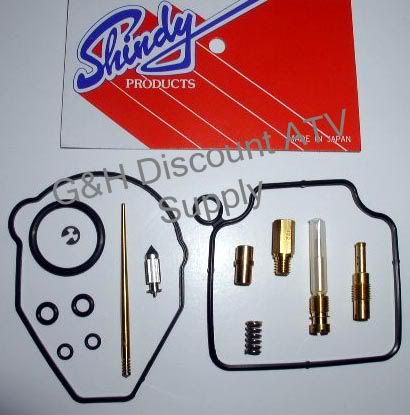

just for reference, the jet in question is the one on the far right of this pic

See less See more

Save

tomgodd

· #5 · Oct 24, 2010

Yep! Thaats the pilot/slow jet. THe only thing I could think of small enough is a peice of wire from a wire brush.

Save

dodgetrucker75

Discussion Starter · #6 · Oct 27, 2010

well, i'm a bit of an impatient person, and couldnt wait for the kit to show up, so i pulled it apart again last night and finally go a piece of wire through it, and now it runs perfect, put new tires on it last night and she is ready for the trail!!!

thanks! this is the first forum i have posted in and gotten a timely, unsarcastic, and most of all correct, responce.... good work, and thanks again, this is how forums should work

Save

Reactions: 1
